滚轮导靴采用三个滚轮来做为导向,三只滚轮通过摆臂结构，在弹簧力的作用下，同时与导轨的正面和两个侧面相接触并紧贴其上。当轿厢运行时，三只滚轮同时在导轨的工作面上滚动，并自动补偿导轨及其他部件安装所形成的几何形状误差。

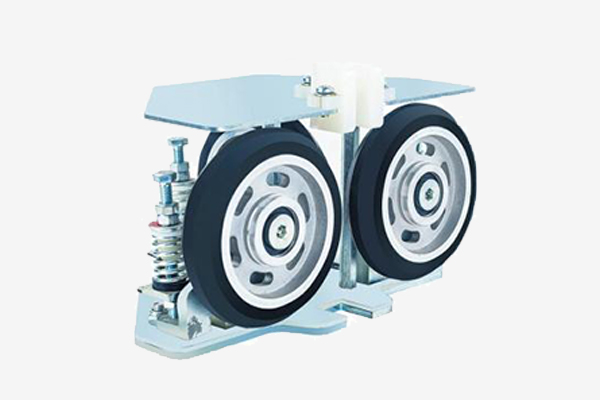

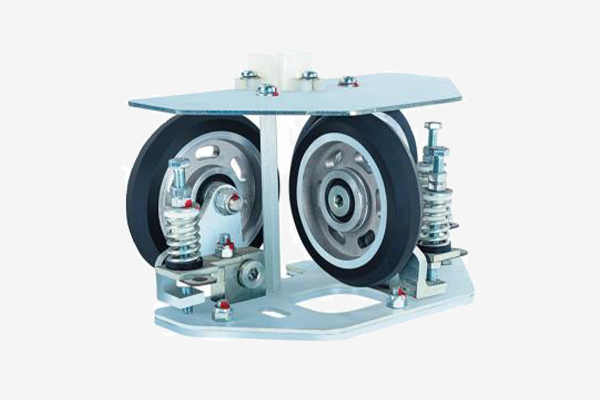

       The roller guide shoe adopts three rollers to do the guidance, three rollers through the swing arm structure, under the action of the spring force, at the same time with the front and two sides of the guide rail contact and close to it. When the car runs, the three rollers roll on the working surface of the guide rail at the same time, and automatically compensate for the geometric error formed by the installation of the guide rail and other components.
